Product description

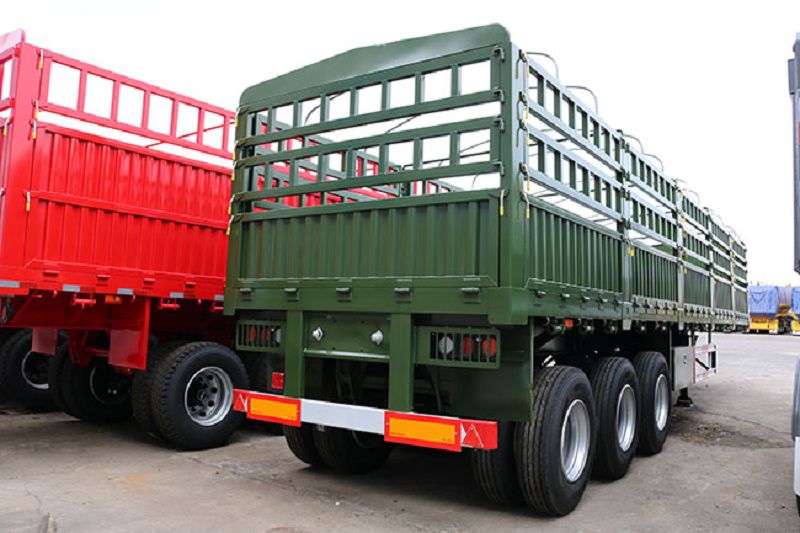

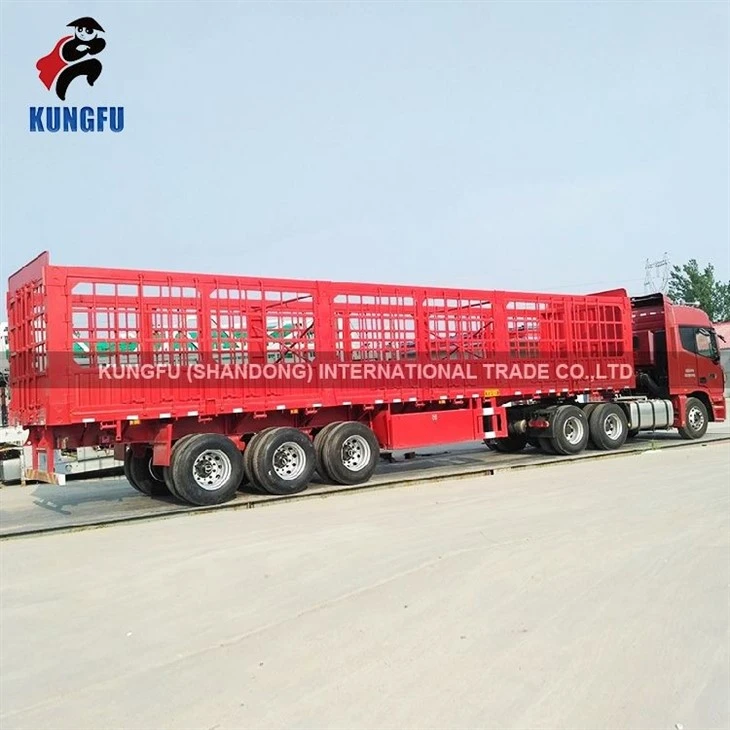

Cargo fence semi-trailer with a fixed cargo storage space and a fence structure is a type of semi-trailer vehicle. This fence cargo semi-trailers is specifically used for transporting various goods, such as daily necessities, building materials, agricultural products, etc. The following is a detailed introduction to the grille type semi-trailer:
----Fence trailer design: fence structure design process of the warehouse mounted semi-trailer are reasonably designed in combination with the user's cargo category, aiming to fully reduce the weight of the carriage under load conditions. This design not only has a simple and applicable structure, but also is easy to disassemble, reducing investment costs for users and creating more profit value.
Fence cargo semi trailer specification
|
Product Name |
2 axles fence semi trailer |
3 axles fence semi trailer |
4 axles fence semi trailer |
|
Size |
9500/ 11000*2500*2800/ 3800 (mm) |
12500/ 13000*2500*2800/ 3800 (mm) |
12500/ 13000*2500*2800/ 3800 (mm) |
|
Payload |
30-60Ton |
30-80Ton |
40-100Ton |
|
Main beam |
Height: 500mm, upper plate is 12mm, middle plate is 6mm, down plate is 14mm ; Material is Q345B Steel. |
Height: 500mm, upper plate is 16mm, middle plate is 10mm, down plate is 18mm ; Material is Q345B Steel. |
Height: 500mm, upper plate is 18mm, middle plate is 12mm, down plate is 20mm ; Material is Q345B Steel. |
|
Axles |
2*13T/ 16Ton LEAO/ FUWA/ BPW/ Other |
3*13T/ 16Ton LEAO/ FUWA/ BPW/ Other |
4*13T/16Ton LEAO/ FUWA/ BPW/ Other |
|
Side Wall Height |
600mm-1700mm (can be customized) |
||
|
Side beam |
16mm channel steel (Material is Q235B steel) |
||
|
Bottom Platform |
3mm checquered steel plate |
||
|
Suspension |
Mechanical suspension (Air suspension optional) |
||
|
Leaf spring |
90(width)mm*13(thickness)mm*10 layer(especial for exporting market) |
||
|
Tire |
12R22.5 / 11.00R20 8/12pcs (Other size optional) |
||
|
Rim |
9.00-22.5 / 11.00R20 8/12pcs (Other size optional) |
||
|
Kin pin |
Jost brand 2.0 or 3.5 inch |
||
|
Landing gear |
Jost brand 28Ton two speed |
||
|
Braking system |
Wabco re 6 relay valve; T30/ 30+T30 spring brake chamber; two units of 45L air tanks |
||
|
Electrical |
LED light , 7 ways ,24V |
||
|
Tool box |
One piece 1m *0.5m*0.5m ( size can be customized) |
||
|
Twist locks |
Optional |
||
|
ABS |
Optional |
||
|
Painting |
1.Sand blasting processing clean rust.2.Coat of anticorrosive primer. 3.Coats of finish urethane paint. 4.Color as customer choice. |
||
|
Shipping terms |
By bulk vessel, RORO, or 40HQ container |
||
