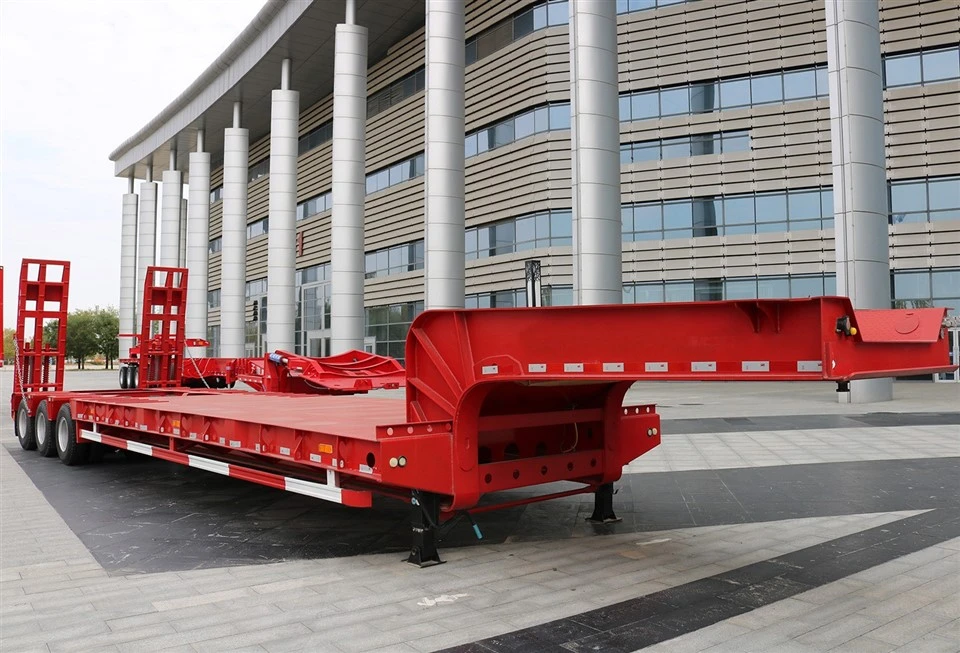

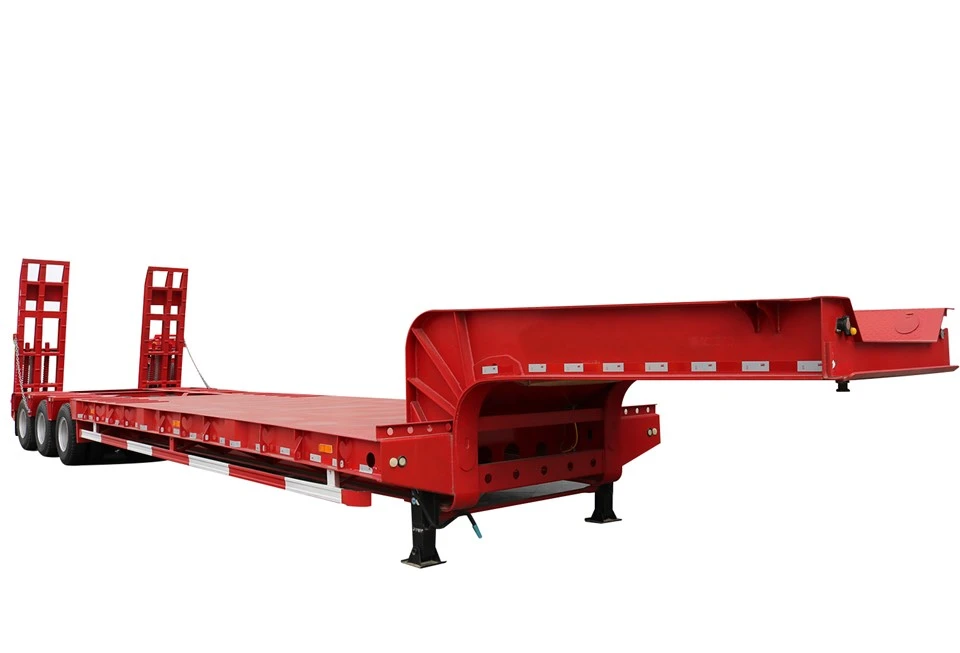

Wholesale Low Bed Semi-trailers From Manufacturers

Size：9500-16500*2500-3000*3200 (can be customized)
Leaf spring：90 mm(Width) * 13 mm(Thickness) * 10 layer or 100 mm * 12 mm * 12 layer
Types：Detachable low bed trailers, gooseneck lowbed trailers, step lowboy trailer, lowboy trailer with hydraulic ramps, special low bed trailer(customize).

Products Description

low bed trailers for sale

Name	3 axles lowbed semi trailer
Dimensions	1300030001290(MM)
Platform	4mm checked plate
Rated Load	60000 kg
Tare Weight	9000 kg
Material of the Main Beam	Q345B manganese plates,
	automatic submerged arc welded,height:500mm
	Thickness:
	Upper plate:18mm
	Middle plate:12mm
	Lower plate:20mm
Side beam	25# channel steel
Kin pin	50mm/90mm (bolt in type)
Landing gear	Single-side operation
Axles	13ton * 3 pieces
Suspension	Mechanical suspension, 10 pieces leaf spring
Braking system	Dual line braking system
Braking system	6 Brake Chamber Double chambers
Tires Specifications	12R22.5 12pcs
Rims	9.0-22.5 12pcs
Electrical System	24 Volt, 7-way socket, LED light
Accessories	Spare Wheel Carrier 1 pieces, without tires
Tool Box	1 piece with a set of tools
Ladder	Mechanical ladder at rear side
Painting	Sand blasting
	One time Primer coating
	Two times finish coating
	Wax sprayed before shipment
Color	Any color will be available

In nude,Polish with water wax before shipment

1. By 40ft/45ft/40fr container

2. By bulk /roro ship

3. As your requirments.

Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.
