Products Description
|
Tare Weight |
About 8.5-13T |
|
Dimension |
13000×3000×1650mm |
|
Loading Capacity |
80T |
|
Axle |
13 T/16T, FUWA /BPW |
|
Rim |
6.5-20/7.5-20/8.00-20/8.5-20 |
|
Tire |
8.25R20/10.00R20/11.00R20/12.00R20 |
|
Suspension |
Mechanical suspension(Germany Type or America Type) Or Air suspension(China brand or BPW brand) |
|
Spring leaf |
90(Width)mm×13(Thickness)mm×10(Layer) or 100×12×12mm |
|
King pin |
JOST brand 2.0 or 3.5inch bolts type or Welding type |
|
Support leg |
28Tons (Double speed) |
|
Main beam |
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel. |
|
Side beam |
16mm-25mm channel steel(Material is Q235 carbon steel) |
|
Ladder |
Manual or Hydraulic type |
|
Gooseneck |
For your choice |
|
ABS |
Optional |
|
Twist Locks |
Four, Eight or Twelve pieces(Lifting type or Twist Screw Type) |
|
Valve |
WABCO valve |
|
Light |
LED light |
|
Voltage |
24V |
|
Receptacle |
7 ways(7 wire harness) |
|
Tool box |
One piece, 1m×0.5m×0.5m(Size can be chosen freely)(equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints. |
|
Shipping Terms |
By bulk cargo carrier, RORO or 40HQ container |

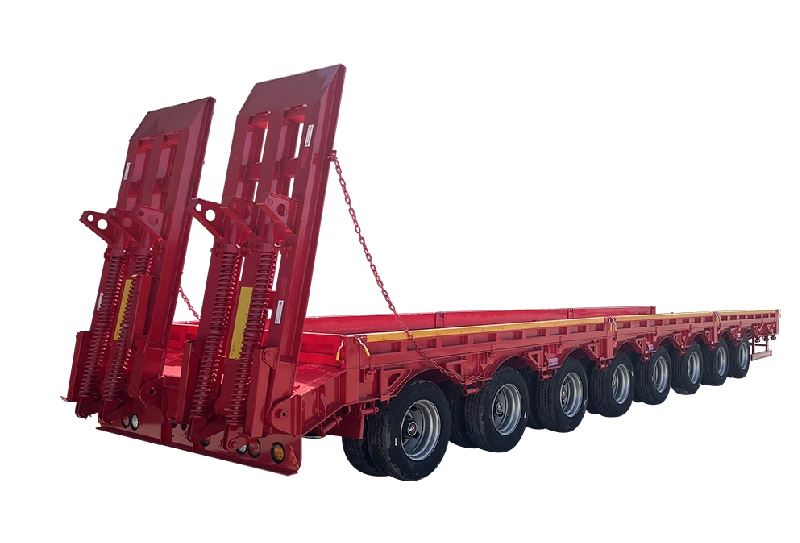

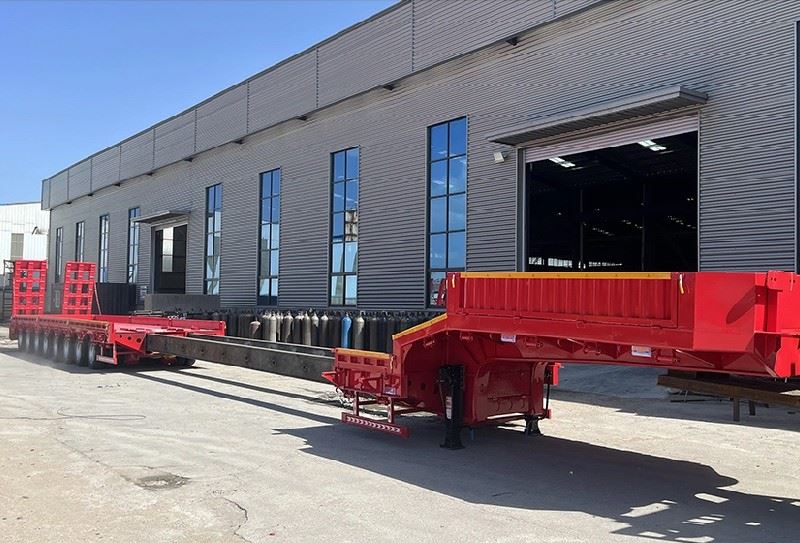

Low Bed Semi Trailer, as known as low bed trailer, lowbed trailer, lowboy trailer. Our lowbed trailer choose Q345B carbon high-tensile steel material. We adopt world famous brand of parts, like JOST, WABCO braking valve etc.
We are manufacturer, provide customized service, design as the customers' every request.
We have a professional trailer design department , rich production experience, short delivery time. Our phone service 24 hours service for you.
FAQ
Q1. Can i paint my logo on trailer?
A:Sure,you can send us your company logo,and we will help you put onto the semi-trailer.
Q2. Which terms of delivery do you support?
A:EXW,FOB,CFR,CIF and we will have a negotiation with our cunstomers before signed the sales contract and according to the customers requirements choose the suitable method.
Q3. Which payment terms do you have ?
A:Normally,We are surpported 100% T/T before shipment ,L/C at sight,if you have other requirements of payment we hope that have a negotiation with us.
Q4. Are you manufacturer or trade company?
A:We are manufacture of semi-trailer and we have our own factory and many engineers .
